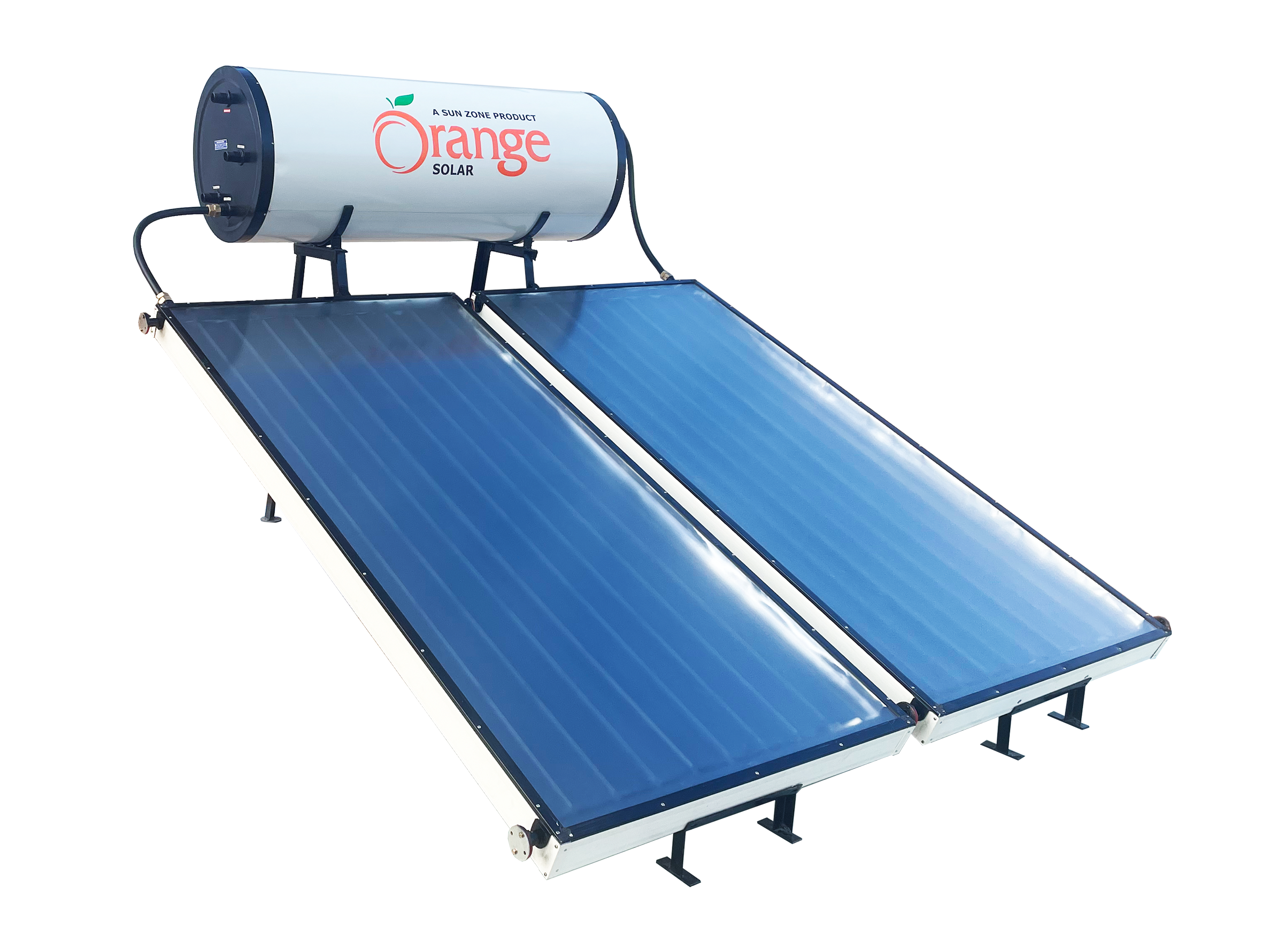

Pressurized FPC Solar Water Heater

post image
Related Products
pressurized

Non Pressurized FPC Solar Water Heater

Product features

This system is very tough and strong, because this systems is used where pressure booster pump is used to get better pressure in the shower, bodyjets & etc.,

The sun heats up the flate plate surface and heat transfer through the risers & headers to the water. Once the water heats up because of low density of water, hot water goes up to the tank. Since the tank has got PUF insulation. It will retain the same temperature upto 72 Hours.

FPC pressurized system consists of chromium plated (NAL technology) heat absorbing plates. Which are colour in black absorb maximum heat (96.5%) consist of copper tubes (Header & Risers). Which is best conductors of heat.

FPC System is very reliable and much better and most efficient solar water heater, It is easy to install and durability. It is available in all the capacities.ORANGE is one of the best brand available in the present market.

Technical Specification

Flat Plate Collector
  • Absorber Coating: Selective Coating of Absorptivity 0.96 ± 0.02
  • Riser Pipe: Copper 12.5mm Q 24 SWG (±0.05mm)
  • Header Pipe: Copper 25mm Q 22 SWG (±0.05mm)
  • Bonding b/w Riser Header: Brazing
  • Bonding b/w Riser & Absorber Sheet: Continuous ultrasonic welding
  • Front Glazing: Toughened Clear / Frosted Glass
  • Backside Insulation: Rockwool
  • Gasket: EPDM Rubber
  • Collector Box: Extruded Alluminium channels
  • Header Inlet & Outlet Jackets: Brass Flanges
  • Assembly: Assembled under pneumatic technology
Technical Specification Supporting Structure
  • Material:Mild Steel with Polyster Grade Powder Coated.
  • Fastners SS 304/GI with Nickle platted.
Available capacities 100,200,300 and 500 litres in domestic, For industrial 500 liters to any capacities

    For industrial applications (This systems can be manufactured according to the customized requirement where hot water requirement is more such as Hotels, Hospitals, PG's, Hostels and etc.,)

Storage Tank
  • Suitable for any type of hard water.
  • International standard diamond line coating keeps the tank free from rust and corrosion.
  • Coating material is glass, a good insulator of heat, ensuring water remains hot for a longer period.
  • No rust possible, ensuring no particles stick, bond, or react with the inner tank surface.
  • Suitable for water hardness up to 200PPM.
  • Special manhole provided for inner tank cleaning.
  • High-density PUF (polyurethane foam) insulation.
  • Provides hygienic and clean water for bathing purposes.
  • Thickness of the Tank 4MM for both shell and dish.
  • Tested upto 10bar pressure, suits for 4bar pressure.
  • Application:Softwater or Hardwater up to 200PPM.
  • Insulation:High density Poly Urethane Foam(PUF) Insulation inside the Tank to resist the hot water long period of 72 hrs.
  • Outer Cladding Material:Pre Painted Galavanised Iron(PPGI)/ Stainless Steel(SS 430 Grade or SS 202 Grade).
  • Hose pipe: 25/35 EPDM Rubber
  • Electrical back-up: 2kw thermostat controlled, varies according to size of the storage tank
  • Sacrificial Anode: To avoid galvanic corrosion
  • 1 years of Warranty (as per company's warranty terms and conditions).
